This series of equipment consists of single screw extruder, extrusion die, vacuum forming cooling tank, belt haul-off unit and servo cutter. Equipment and product contact surface can be made of stainless steel(SUS316)or custom designed to match customer’s requirements.

Applicable materials: PVC;TPV;TPU and other materials for medical application.

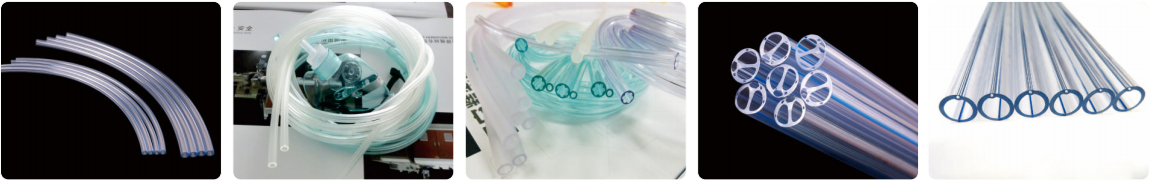

Applicable tubes: Nasal oxygen cannula, tracheal intubation, infusion tube, elastomeric infusion tube, double-cavity, multi-cavity and single row tube, etc.

Applicable tube diameter and margin of tolerance: outside diameter: 1.5-20mm; dimensional tolerance of outside diameter: +/-0.01, +/-0.02, +/-0.05mm; wall thickness: 0.1-3.0mm.
